EWRS-HS SERIES

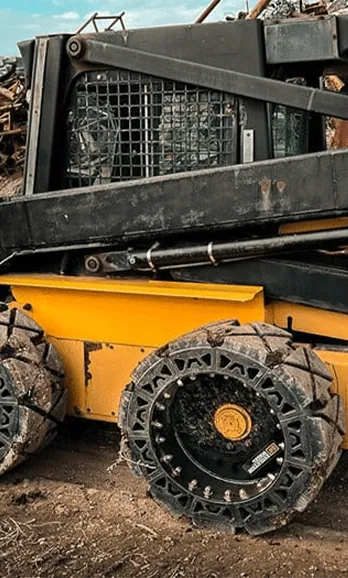

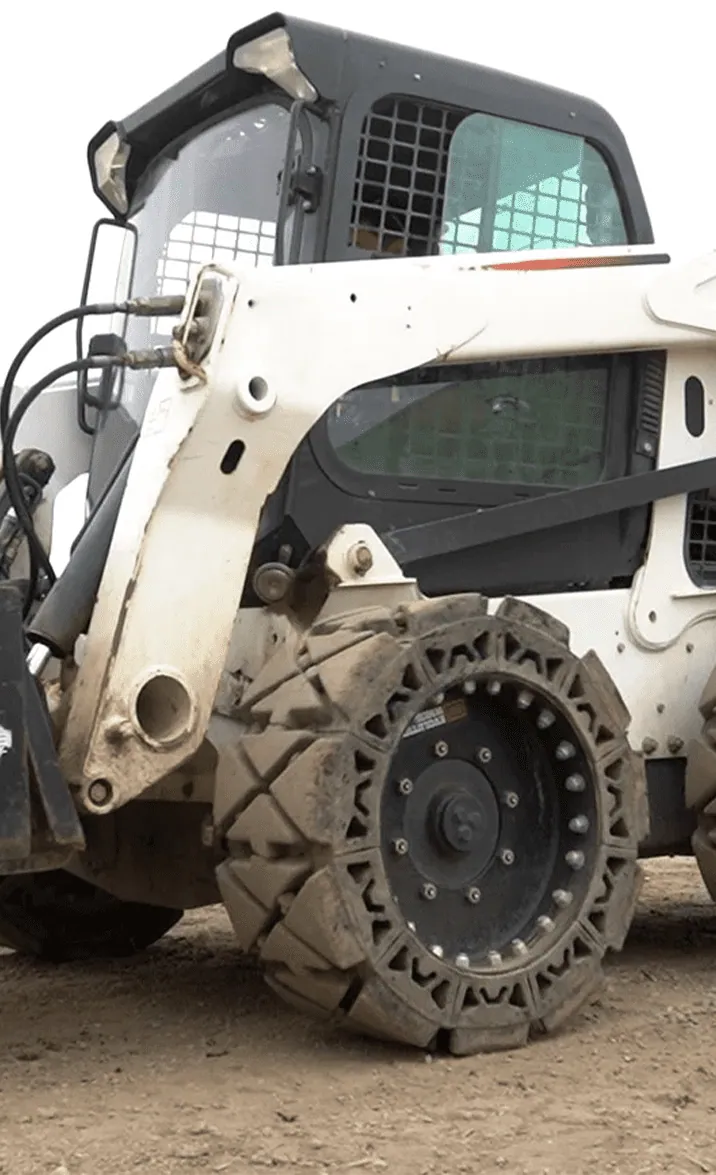

The EWRS-HS product series of hard surface skid steer tires were designed to meet the needs of severe duty customers working on hard surfaces and burning through tires on a daily basis.

By creating a unique tread design that increases surface area in contact with the ground, our EWRS-HS product series provides unmatched wear life on concrete and asphalt surfaces. Customers can expect a 30-40% increase in wear life over our ERWS-AT series product line, further reducing cost/hr and increasing their machine ROI's.

Tread pattern is one thing but tread depth is another! To make the new EWRS-HS product series meet the Evolution Wheel standard we gave it the most tread depth of any hard surface tire on the market. By maintaining a 52/32nd tread depth, Evolution Wheel is raising the bar in hard surface applications.

With serviceable tire sections the need for a service truck, specialized technicians and press on machines is all but eliminated. We have reduced your service tooling down to only a 3/4" wrench in your operator's back pocket and repair parts are readily available at your nearest onsite storage container or in the toolbox of your pickup.

WATCH THE PRODUCT VIDEO

Play button hard surface skid steer tire


















  Actual Tire Dimensions
Tire Size Overall Diameter Width Rim Diameter Wearable Tread Depth Weight Max Load Rating
----- Inch (mm) Inch (mm) Inch (mm) 32nd (mm) lb (kg) lb (kg)
12x16.5 32.5" 12" 20.5" 52 240 lb 6780 lb
(31x12-20) (825) (305) (520) (42) (110 kg) (3075 kg)
