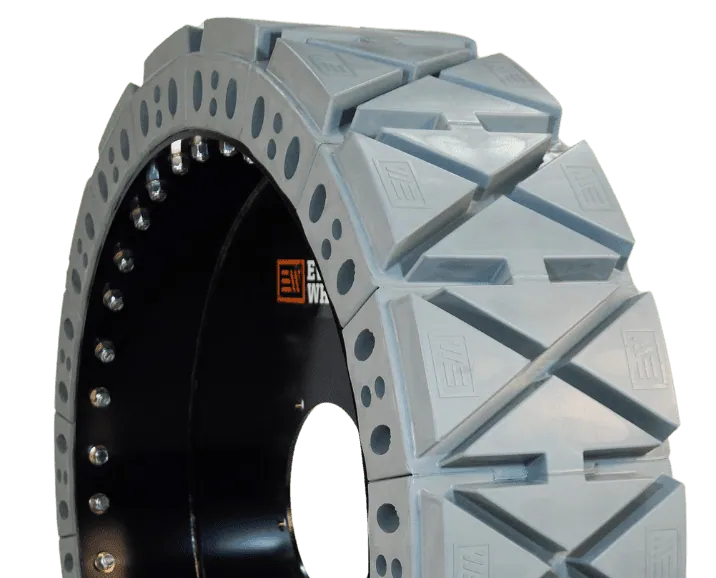

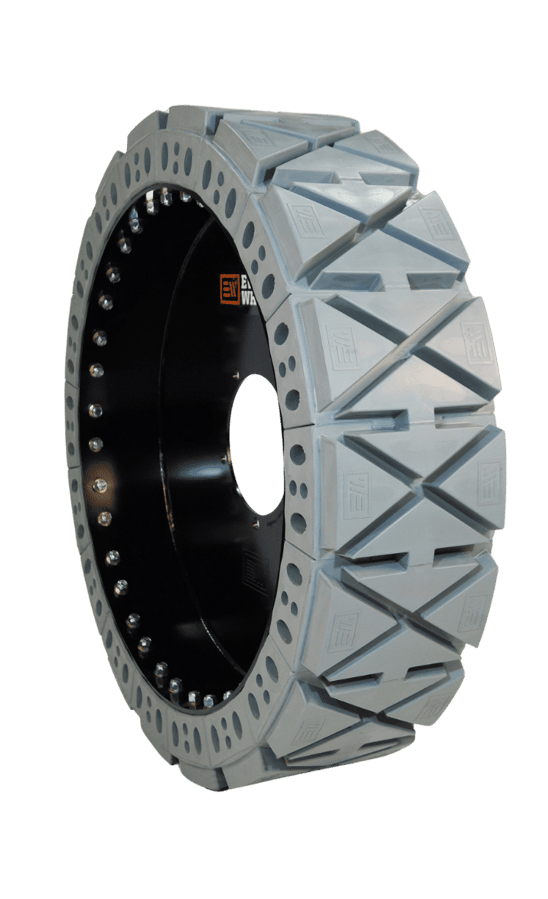

EWRS-TH-NM | Solid Telehandler Tire | Non-Marking
Is your telehandler ready for an upgrade? Evolution Wheel offers a full line of solid telehandler tires to meet your needs.
What You Need To Know About EWRS-TH-NM Telehandler Tires
Proprietary Rubber Compound
Mixing our rubber and creating our formulas can provide our customers with the best non-marking telehandler tire rubber compounds. With our non-marking rubber compounds, you won't have to worry about marking up your freshly laid concrete. Our rubber compounds are designed for wear resistance while being UV tolerant.
Longer Wear Life
We designed our EWRS-TH-NM non-marking telehandler tire series with maximum stability and load-bearing capacity. Combining our specially engineered core hole design and bidirectional tread pattern provides a consistent and predictable loading profile.
Designed for Hard Surfaces
A bi-directional tread pattern is used in the EWRS-TH-NM non-marking telehandler tire series for multi-directional movement on hard surfaces. It reduces the ground pressure of the tire on hard surfaces since the tread design increases contact with the ground.
No Special Tools, No Extra Hassle
By providing serviceable non-marking telehandler tire sections, we have reimagined the maintenance process. You don't need specialized technicians or service trucks. It only requires a 15/16" wrench and a few repair parts, readily available in your toolbox or storage unit.
| Actual Tire Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Tire Size | Overall Diameter | Width | Rim Diameter | Wearable Tread Depth | Weight | Load Rating (5MPH) | Load Rating (20MPH) |
| ----- | Inch (mm) | Inch (mm) | Inch (mm) | 32nd (mm) | lb (kg) | lb (kg) | lb (kg) |
| 14x24 | 52" | 14" | 41" | 52 | 850 lb | 18,750 lb | 9,000 lb |
| 52X14-40 | (1321) | (356) | (1041) | (42) | (386 kg) | (8,523 kg) | 4,091 kg |
